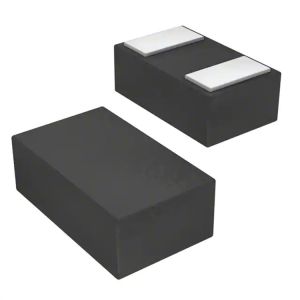

Suppression Diode TVS IC Diode Transistor TPD1E10B09QDPYRQ1

Name: Suppression Diode TVS IC Diode Transistor TPD1E10B09QDPYRQ1
Brand: TPD1E10B09QDPYRQ1
Price: 1 USD

Ask Latest Price

Brand Name :TPD1E10B09QDPYRQ1

Model Number :TPD1E10B09QDPYRQ1

Certification :TPD1E10B09QDPYRQ1

Place of Origin :China,Shenzhen

MOQ :4pcs

Price :Contact us for more details

Payment Terms :T/T, WHITE HORSE/GETS TESTING, Western Union

Supply Ability :4020000pcs/Day

Delivery Time :1day

Packaging Details :Standard

Type :TPD1E10B09QDPYRQ1

Shipping by :DHL\UPS\Fedex\EMS\HK Post

Packaging :Original Factory Sealed Packing

Lead time :Immediately Shipment,in stock

Application :PCB

Contact Now

Add to Cart

View Product Description

TPD1E10B09QDPYRQ1 Suppression Diode TVS Ic Electronic Components

EU RoHS

Compliant

ECCN (US)

EAR99

Part Status

active

Automotive

Yes

PPAP

Yes

type

TVS

Configuration

Single

Direction Type

Bi-Directional

Number of Elements per Chip

Maximum Working Voltage (V)

5.5

Minimum Breakdown Voltage (V)

9.5

Maximum Clamping Voltage (V)

20(Typ)

Maximum Peak Pulse Current (A)

5.5

Maximum Leakage Current (uA)

0.1

Test Current (mA)

Peak Pulse Power Dissipation (W)

Capacitance Value (pF)

10(Typ)

Minimum Operating Temperature (°C)

-40

Maximum Operating Temperature (°C)

125

Supplier Temperature Grade

Automotive

Packaging

Tape and Reel

Supplier Package

X1SON

Pin Count

Mounting

Surface Mount

Package Height

0.4(Max)

Package Length

1.1(Max)

Package Width

0.7(Max)

PCB changed
